Design an LLM inference platform serving 1,000 requests per second across several models.

30-second answerSay your answer out loud first, then reveal.

An API gateway (auth, rate limits, quotas) feeds a router that picks the model or deployment (by task, tenant, cost and load). Model servers (vLLM/SGLang/TensorRT-LLM) on GPU pools use continuous batching, paged KV cache and prefix caching, with autoscaling based on queue depth and KV utilisation. Add streaming responses, fallbacks across replicas and providers, observability (TTFT, TPOT, throughput, errors, cost), and capacity planning from token-level traffic modelling.

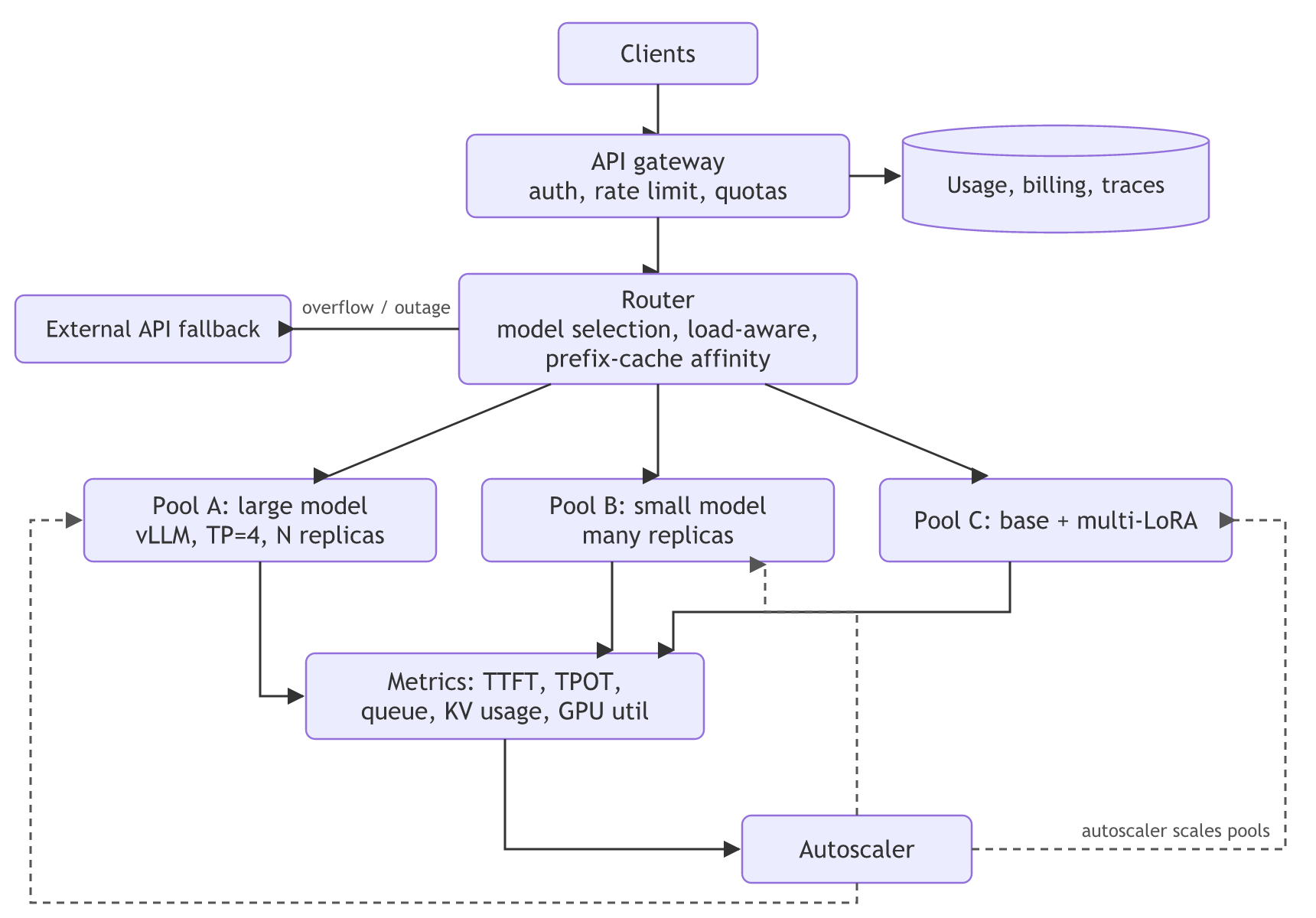

LLM inference platform: clients go through an API gateway (which logs usage and billing) to a router that sends requests to three GPU pools or an external API fallback, while pool metrics feed an autoscaler that scales the pools.

1. Requirements and traffic model:

1,000 RPS × average (input, output) tokens, e.g. 1,500 in / 300 out, gives 1.5M prefill tokens/s and 300K decode tokens/s.
SLAs: p95 TTFT < 1s, TPOT < 50ms. Peak-to-average ratio, multi-region needs.

2. Capacity planning: benchmark each model/GPU combination to find sustainable throughput at the SLA → replicas = peak load ÷ per-replica capacity + headroom.

3. Serving engine choices: continuous batching, PagedAttention, prefix caching, chunked prefill, quantization (FP8), speculative decoding for latency-sensitive routes. Possibly disaggregated prefill/decode pools for long-prompt traffic.

4. Routing:

Model routing: a cheap model for easy requests, a large one for hard ones (classifier or rules).
Load-aware: least queue depth / KV utilisation.
Cache-aware: send requests with the same long prefix to the same replica (prefix cache hits).
Fairness: per-tenant quotas, priority classes (interactive vs batch).

5. Autoscaling: scale on queue length, KV-cache utilisation and TTFT, not CPU. GPU cold starts (loading 100+ GB of weights) take minutes, so keep warm capacity, use fast weight loading, and predictive scaling.

6. Reliability: health checks, retries on another replica, circuit breakers, graceful degradation (fall back to a smaller model), multi-region.

7. Observability and cost: per-request token counts, TTFT/TPOT histograms, GPU utilisation, cost per 1M tokens per model, per-tenant usage.
