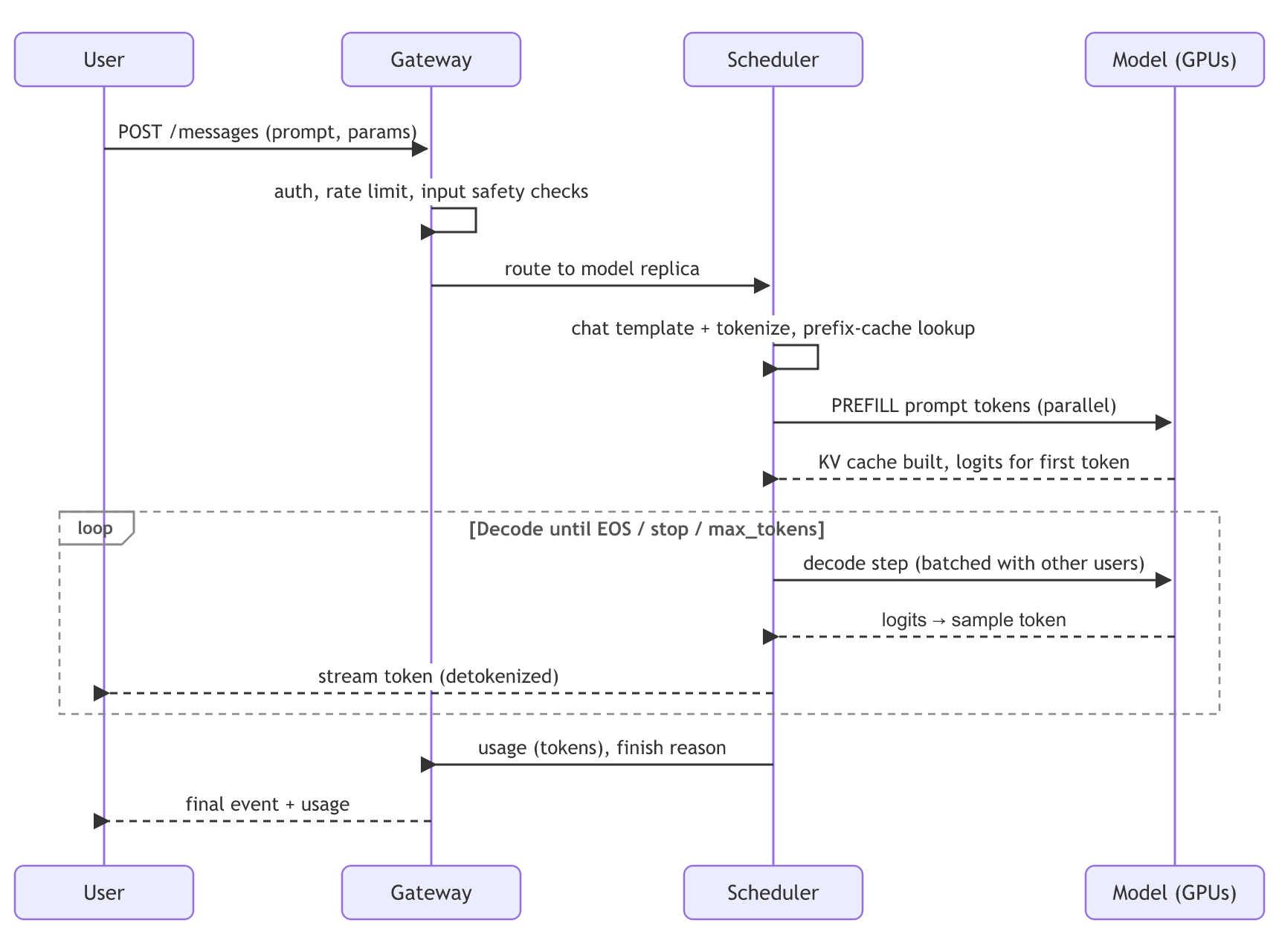

Walk through everything that happens from the moment a user sends a prompt to a hosted LLM until the response streams back.

Step-by-step detail

1. Gateway: API key / auth, quota and rate limits, request validation, possibly input moderation.
2. Routing: pick a replica based on model, load and prefix-cache affinity.
3. Preprocessing: apply the chat template (system/user/assistant markers, tool definitions), tokenize into IDs, check context length.
4. Scheduling: the request joins the continuous batch; KV blocks are allocated (PagedAttention); cached prefix blocks are reused if available.
5. Prefill: embeddings → N transformer layers (attention + MLP, distributed across GPUs with tensor parallelism) → KV cache for all prompt tokens → logits for the next token. Determines TTFT.
6. Decode loop:
   Logits → temperature/top-p, penalties, logit bias, grammar mask (structured output) → sample a token.
   Detokenize incrementally (handling multi-byte characters) and stream via Server-Sent Events.
   Stop on EOS, stop sequence, max tokens, or tool-call completion.
7. Post-processing: output safety filtering (streaming-compatible), tool-call parsing, usage accounting (input/output/cached tokens), logging and metrics (TTFT, TPOT).
