Q36HardSystem design

Design a ChatGPT-like consumer chat application for 10 million daily active users.

30-second answerSay your answer out loud first, then reveal.

Requirements and estimates

  • 10M DAU × ~15 messages/day = 150M messages/day ≈ 1,700 QPS average, ~5K QPS peak.
  • ~3K input tokens (with history) + ~500 output tokens per message ≈ 450B input and 75B output tokens/day. Inference is the dominant cost, so routing and caching matter a lot.
  • SLAs: TTFT < 1s p95; availability 99.9%.

Architecture

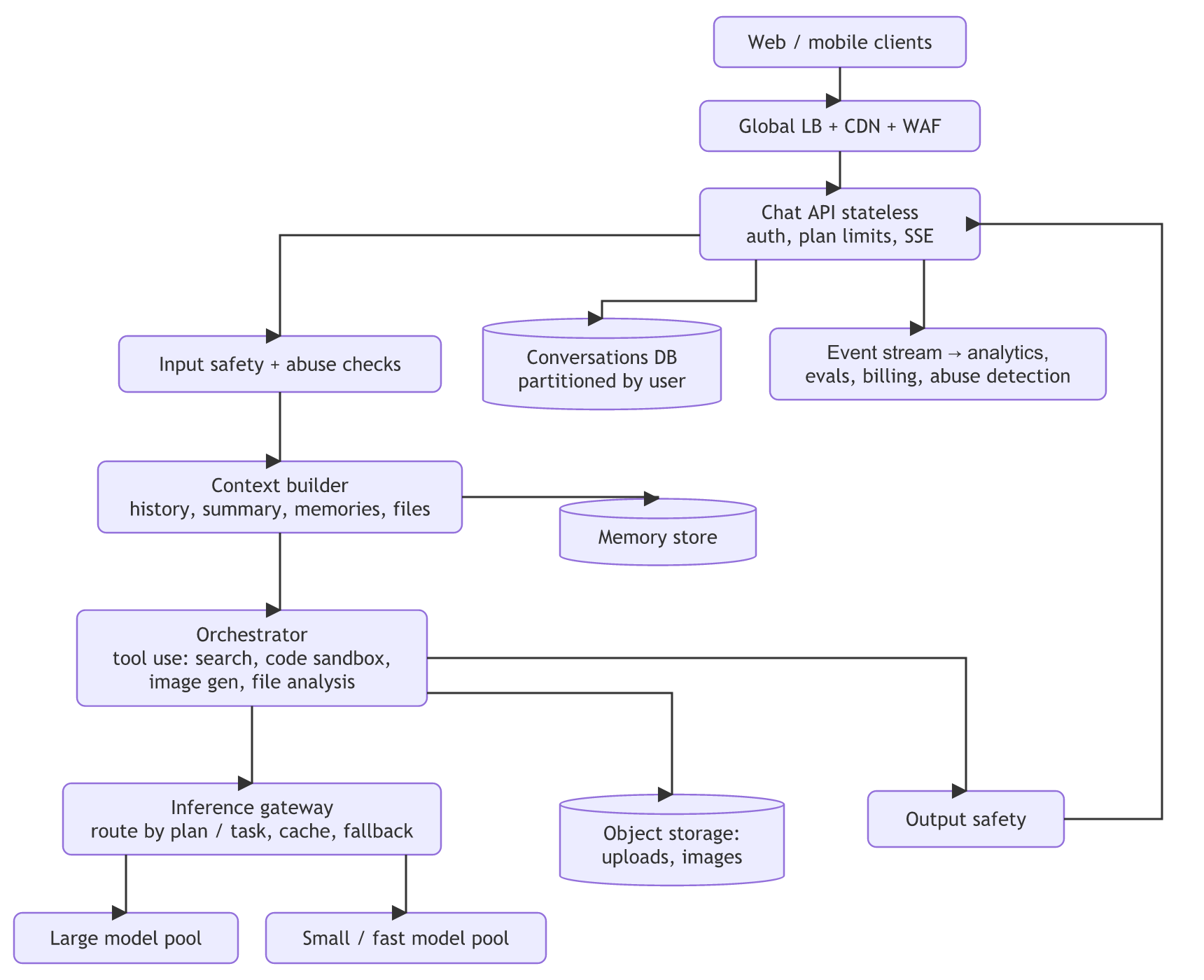

Consumer chat architecture: clients reach a stateless chat API through a global load balancer, CDN and WAF; requests pass input safety, a context builder backed by memory, and an orchestrator with tools, then an inference gateway routing to large or small model pools, with output safety returning to the API, plus a conversations DB, object storage and an event stream for analytics, evals, billing and abuse detection.

Deep dives

  • Context building: last N turns + rolling summary + relevant memories; token budget per model; stable prefix for prompt caching (system prompt + tool definitions first).
  • Routing: free tier → efficient model; paid → frontier; auto-route by detected task (simple chit-chat vs coding vs reasoning).
  • Tools: web search, code execution in isolated sandboxes (gVisor/Firecracker-style), file parsing, image generation as separate async services.
  • Storage: conversations in a horizontally scalable DB, sharded by user_id; hot threads cached.
  • Rate limiting: per user and plan (messages per window, tokens), plus global capacity-based admission control.
  • Safety: layered classifiers, abuse detection on accounts (bot farms, scraping), reporting flows.
  • Reliability: multi-region active-active for the API; model pools across regions; graceful degradation to smaller models.
  • Cost controls: caching, routing, output length limits, per-plan quotas.

Quality loop

Feedback buttons, sampled evals, A/B testing of model and prompt versions, regression gates.
