Categorical cross-entropy

Categorical cross-entropy is a multi-class loss function that compares a one-hot label with the softmax probabilities of the output layer and charges −ln of the probability given to the true class.

Last updated: 05 Oct, 2026 · TensorFlow 2 / Keras

Binary cross-entropy handles two classes with one sigmoid output. With three or more classes the output layer has one neuron per class, Softmax turns them into probabilities, and the loss needs the label written as a vector too.

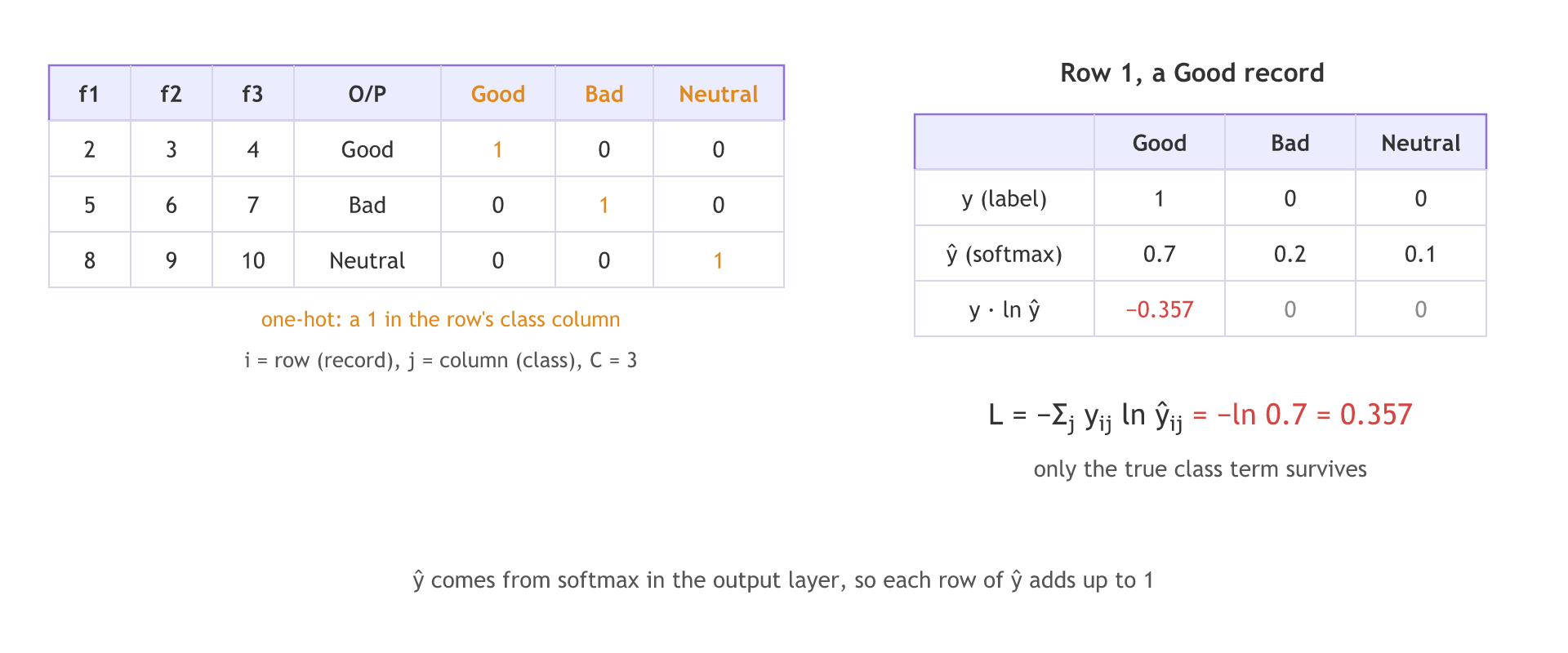

One-hot encoding the Good, Bad and Neutral labels

The board's dataset has three features and a three-class output. The first step is to one-hot encode the output: one column per class, a 1 in the column of the row's class and 0 everywhere else.

Writing the categorical cross-entropy formula

• i is the row (the record) and j the column (the class); C is the number of categories, 3 here.
• y_i = [y_i1, y_i2, …, y_iC] is the one-hot row, with y_ij = 1 if the record is in class j and 0 otherwise.
• ŷ_ij is the predicted probability of class j for record i. It comes from the softmax activation in the output layer, which divides e^z_j by the sum of e^z_k over all classes, so each row of ŷ adds up to 1.

Keeping only the true class term

Because the label is one-hot, every term with y_ij = 0 drops out of the sum. For a Good record, y = [1, 0, 0], and a softmax output ŷ = [0.7, 0.2, 0.1]:

So the loss is −ln of the probability the network gave to the right class. The other probabilities still matter through softmax: raising them lowers the true class's share.

Computing categorical cross-entropy in NumPy

Labels and softmax outputs

The three board rows, with logits chosen so the first row's softmax is about [0.7, 0.2, 0.1]:

import numpy as np

classes = ["Good", "Bad", "Neutral"]
labels = np.array([0, 1, 2])               # rows (2,3,4) Good, (5,6,7) Bad, (8,9,10) Neutral
one_hot = np.eye(3)[labels]                # [1,0,0], [0,1,0], [0,0,1]

def softmax(z):
    e = np.exp(z - z.max(axis=1, keepdims=True))
    return e / e.sum(axis=1, keepdims=True)

logits = np.array([[2.0, 0.75, 0.05], [0.3, 1.6, -0.4], [0.5, 0.9, 1.1]])
y_hat = softmax(logits)                    # one row of probabilities per record

The one-hot loss and the integer-label loss

def cce(one_hot, y_hat):
    return -(one_hot * np.log(y_hat)).sum(axis=1)       # one-hot labels

def sparse_cce(labels, y_hat):
    return -np.log(y_hat[np.arange(len(labels)), labels])  # integer labels

print("one-hot:\n", one_hot)
print("y_hat:\n", y_hat.round(3))
print("categorical, one-hot labels:", cce(one_hot, y_hat).round(3))
print("sparse, labels", labels, "       :", sparse_cce(labels, y_hat).round(3))
print("cost:", round(cce(one_hot, y_hat).mean(), 3))

notes = np.array([[0.2, 0.3, 0.5]])         # the notes' softmax output
print("notes' row, true class 2:", cce(np.array([[0, 0, 1]]), notes).round(3), sparse_cce(np.array([2]), notes).round(3))

one-hot:
 [[1. 0. 0.]
 [0. 1. 0.]
 [0. 0. 1.]]
y_hat:
 [[0.7   0.201 0.1  ]
 [0.194 0.71  0.096]
 [0.232 0.346 0.422]]
categorical, one-hot labels: [0.357 0.342 0.862]
sparse, labels [0 1 2]        : [0.357 0.342 0.862]
cost: 0.52
notes' row, true class 2: [0.693] [0.693]

What the losses printed

• The first row gets ŷ = [0.7, 0.2, 0.1] and a loss of 0.357, the −ln 0.7 worked above.
• The other rows cost 0.342 (Bad gets 0.71) and 0.862 (Neutral gets only 0.422, the network is unsure), and the cost is their mean, 0.52.
• One-hot and integer labels give identical losses, row by row, and the notes' [0.2, 0.3, 0.5] with the true class at index 2 costs −ln 0.5 = 0.693 either way.

Using integer labels with sparse categorical cross-entropy

Sparse categorical cross-entropy is the same loss with the label written as a class index, 2, instead of the one-hot row [0, 0, 1]. It picks −ln ŷ at that index directly. With many classes (10,000 words in a vocabulary) the integer labels save the memory of a huge one-hot matrix.

The notes list a disadvantage, losing the probabilities of the other categories. That describes reading only the top index of a prediction; the sparse loss gives the same number as the one-hot loss, and the model still outputs the full softmax row.

Computing the loss from logits

A softmax written as e^z / Σ e^z overflows for large logits: e¹⁰⁰⁰ is infinite in floating point, and infinity divided by infinity is nan. Taking the log of softmax in one step, after subtracting the row's largest logit, stays finite:

def cce_from_logits(one_hot, z):
    log_p = z - z.max(axis=1, keepdims=True)
    log_p = log_p - np.log(np.exp(log_p).sum(axis=1, keepdims=True))   # log softmax
    return -(one_hot * log_p).sum(axis=1)

big = np.array([[1000.0, 0.0, -1000.0]])
with np.errstate(all="ignore"):
    naive = np.exp(big) / np.exp(big).sum()
print("naive softmax:", naive)
print("from logits, board rows:", cce_from_logits(one_hot, logits).round(3))
print("from logits, big row, true class Bad:", cce_from_logits(np.array([[0, 1, 0]]), big))

naive softmax: [[nan  0.  0.]]
from logits, board rows: [0.357 0.342 0.862]
from logits, big row, true class Bad: [1000.]

The naive softmax prints [nan, 0., 0.]; the log-softmax form gives the board rows the same 0.357, 0.342 and 0.862, and the big row a loss of 1000 for a true class that the network scored 1000 below the top. This is what from_logits=True does in Keras.

Categorical cross-entropy in Keras

import keras
from keras import layers

model = keras.Sequential([keras.Input(shape=(3,)),        # f1, f2, f3
                          layers.Dense(8, activation="relu"),
                          layers.Dense(3, activation="softmax")])   # Good, Bad, Neutral
model.compile(optimizer="adam", loss="categorical_crossentropy")    # one-hot labels
# model.compile(optimizer="adam", loss="sparse_categorical_crossentropy")  # labels 0, 1, 2

# logits: no softmax in the last layer, and the loss applies it
# layers.Dense(3) with loss=keras.losses.CategoricalCrossentropy(from_logits=True)

Pick the loss by the label format: one-hot rows go with categorical_crossentropy, integer labels 0, 1, 2 with sparse_categorical_crossentropy. The model is the same.

Categorical vs sparse categorical cross-entropy

Where you use categorical cross-entropy

• Single-label multi-class problems: a review that is Good, Bad or Neutral, a digit from 0 to 9, a type of flower.
• Image classification: the softmax layer at the end of a convolutional network with one neuron per class.
• Language models: predicting the next word out of a vocabulary, with sparse labels because the vocabulary is large.
